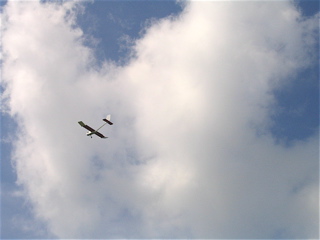

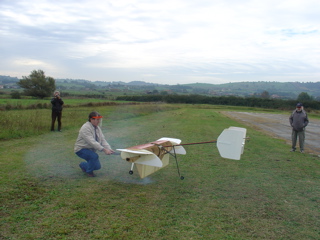

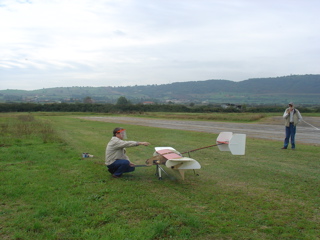

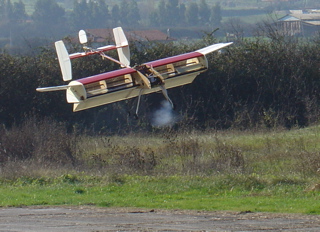

Test flights of two latest prototypes May-October 2007: STOL & STOVL

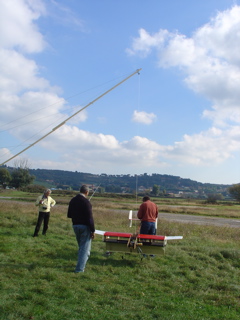

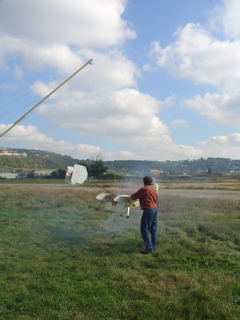

Tethered tests for vertical-take-off capability 2007

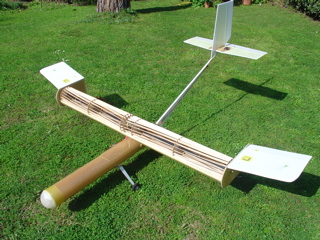

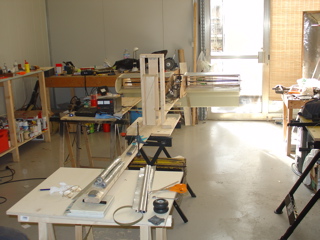

 2007 Construction & flight preparation

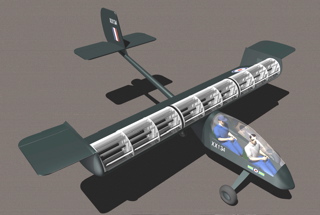

2006: FanWing Ultralight Simulation Project

Imperial College graduate Oliver Ahad wins UK National Aerospace Universities Association 2006 Award


2005:  London Development Agency Jumpstart-Connect Award funds initial steps in FanWing Ultralight Development Project

Open University, KMi's Jon Linney constructs designs based on Pat Peebles' specifications

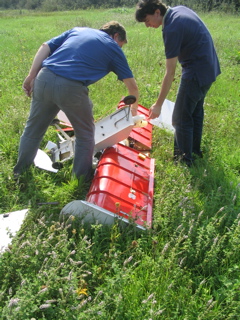

Lost prototype - weak tail boom 2005

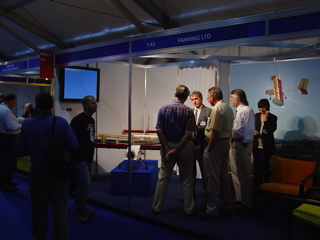

Farnborough 2004

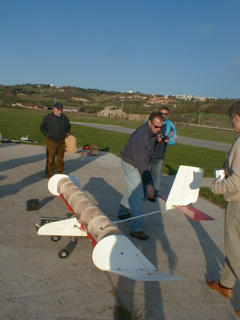

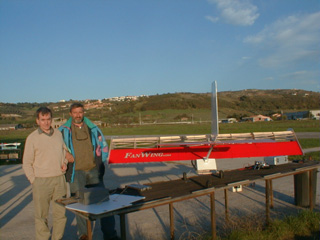

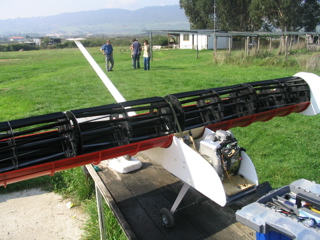

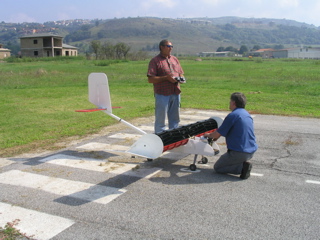

2004 UAV prototype, weight 10kg.  Rotorspan 2.2 m. (with winglets 3m.)  Payload 8kg.

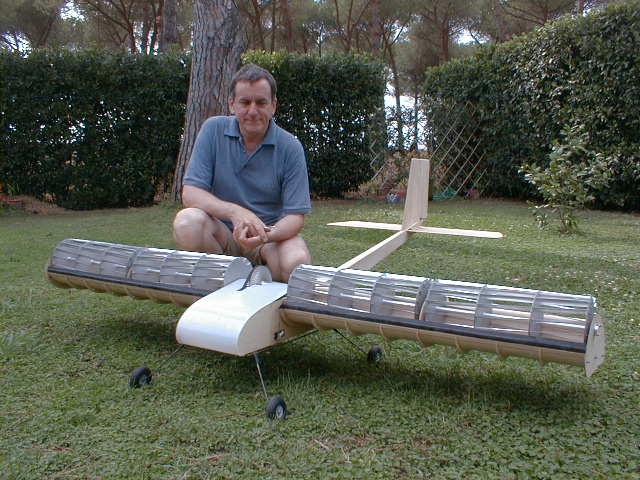

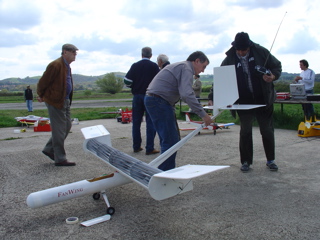

Below: 2002 FanWing 8  Wing span 1.8 mts.  Weight 6kg.

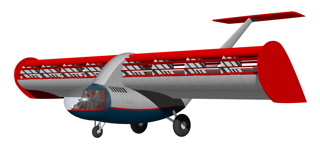

Projected FanWing Aircraft: a heavy lifter for fire fighting or crop dusting, the load to be carried inside the wings. (See also list of applications.)  These images by Jon Linney, KMi, Open University.

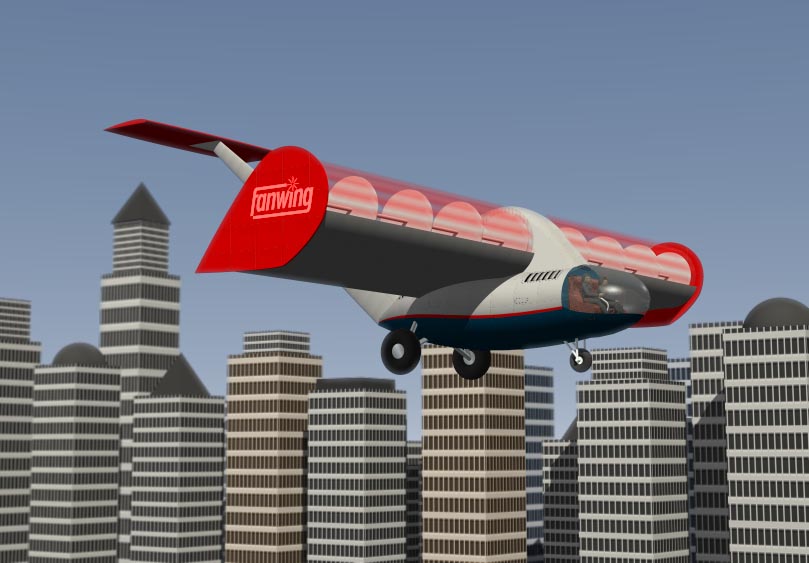

Open University animation    cityflight.qt

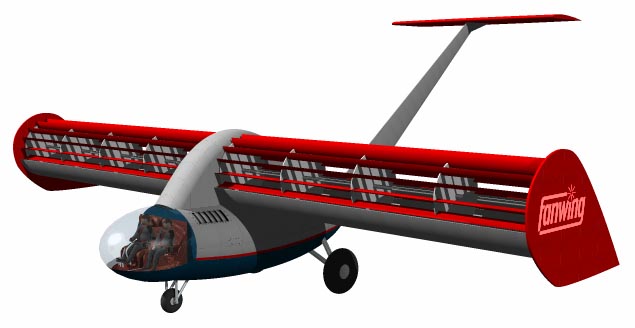

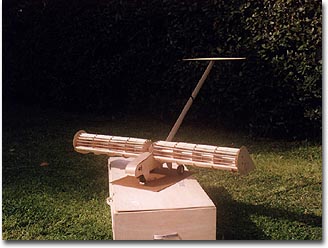

frontimage.jpg Rotate with mouse.

Download Quicktime 3 from

See also the KMi firstflight website

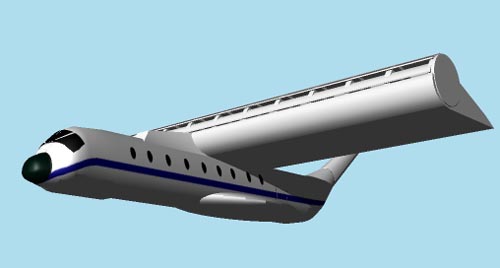

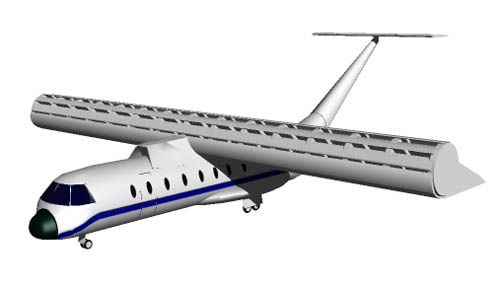

The two images below by Adrian Mann show projected images of a mid-sized commuter FanWing aircraft.

mann1.jpg mann2.jpg

Adrian Mann:

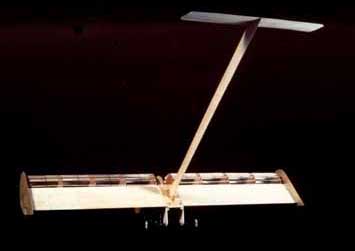

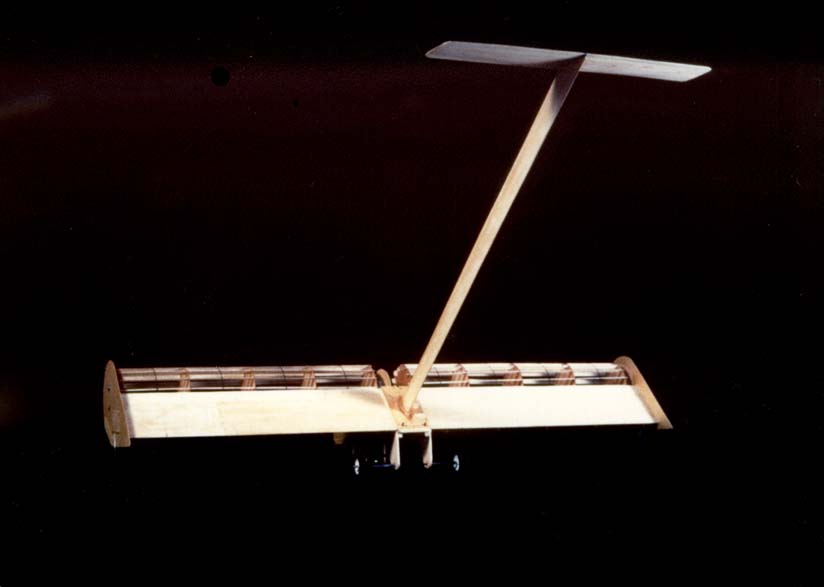

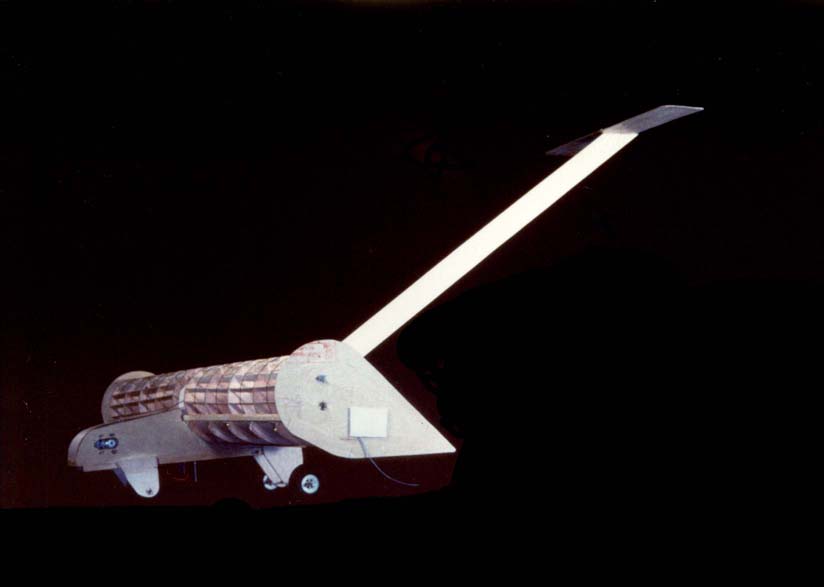

Photographs below of the 1999 prototype, taken by Ettore De Conciliis

studio1.jpg studio2.jpg

Wing section

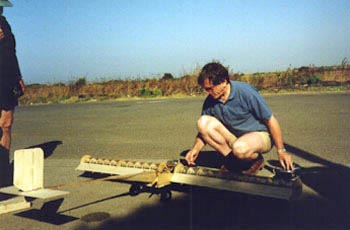

First experiments 1998/9

23.9KB 23.1KB

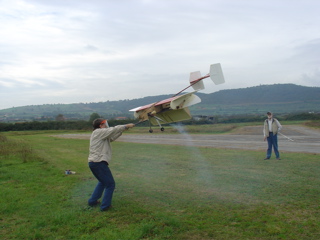

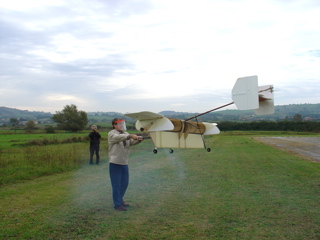

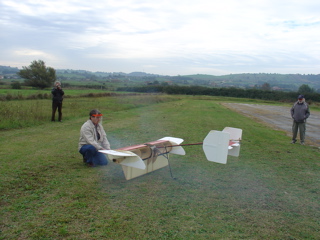

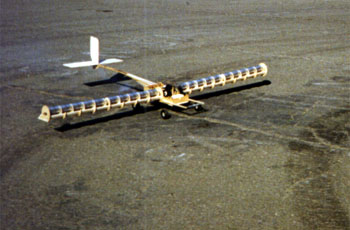

First flying model, 2 mt.wingspan 4 kg.

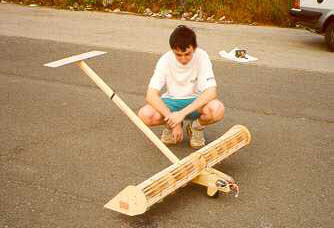

Second flying model, 120 cm span, 2kg. electric powered

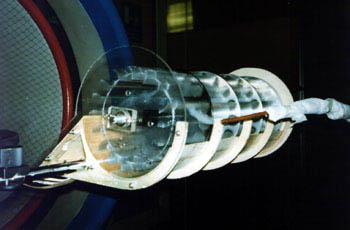

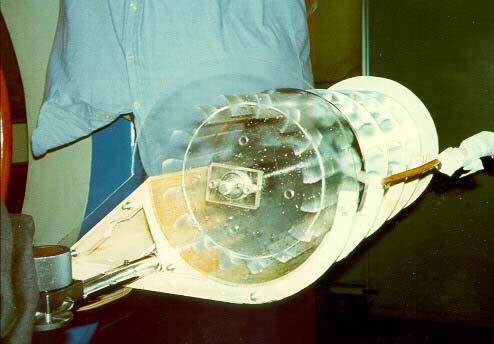

Wind tunnel tests, flow visualisation, measuring forces, University of Rome 1998

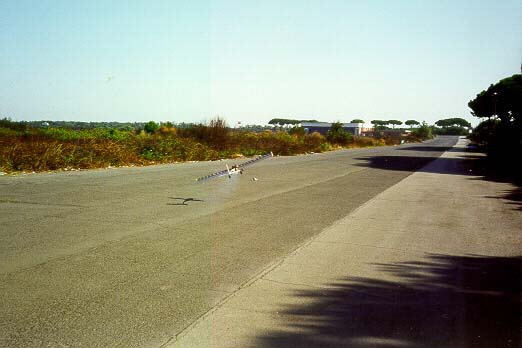

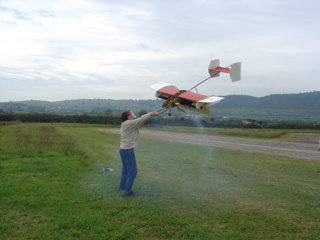

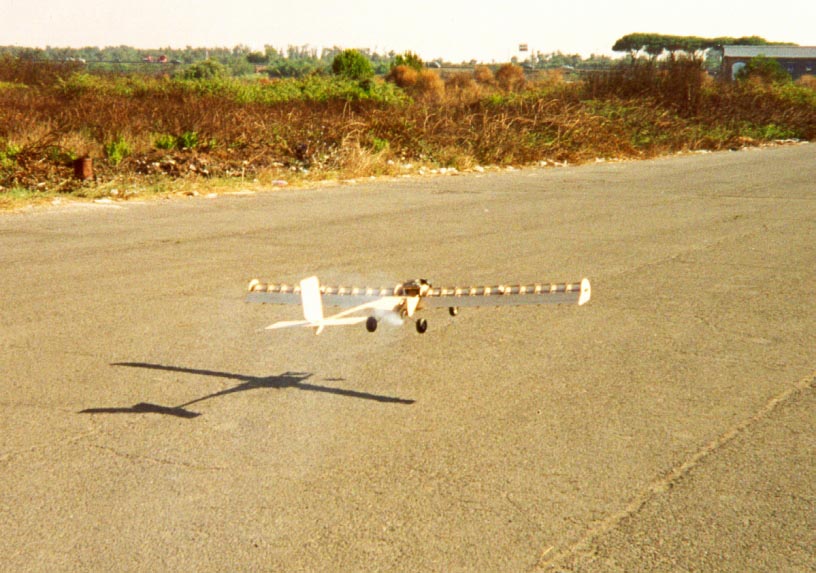

First flight

Second flight

CG too far back

Getting up to speed

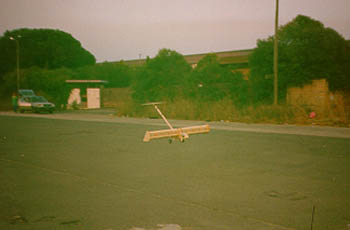

Evening flight

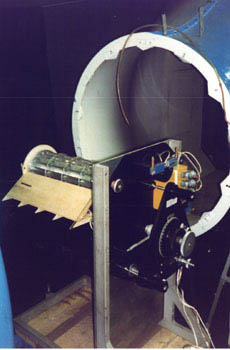

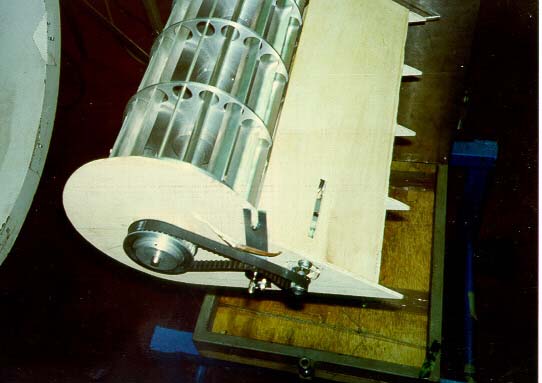

Wind tunnel model

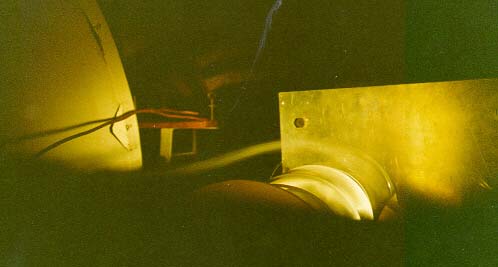

Flow visualisation

Flow over the top
